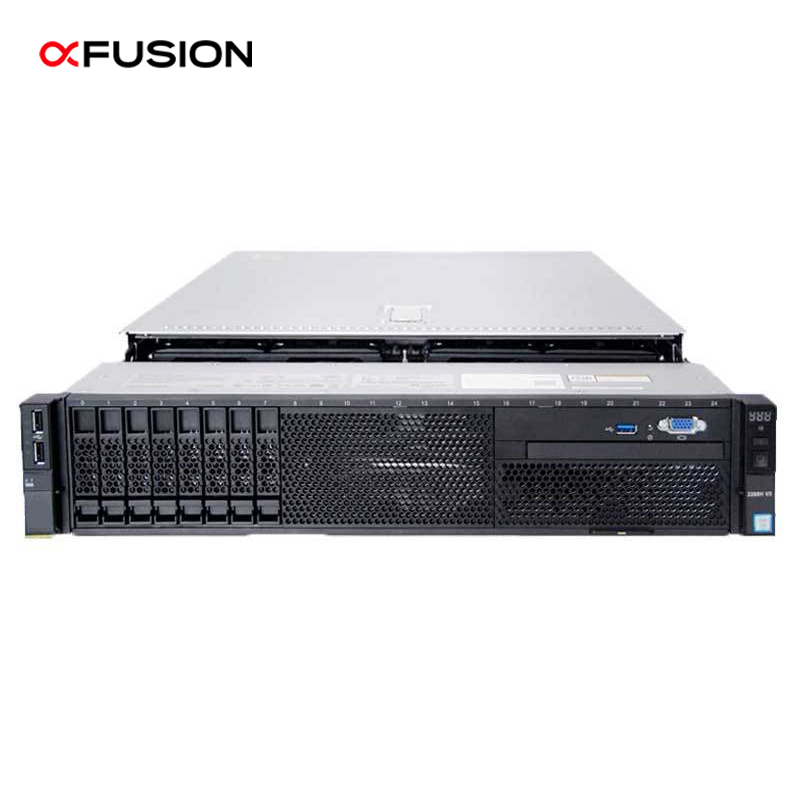

FusionServer 2288H V6 2U Rack Server: A versatile 2-socket rack server designed with flexible configurations to handle demanding workloads. Ideal for cloud computing, virtualization, high-performance databases, and big data analysis.
Configured with dual Intel Xeon Scalable processors, 32 DDR4 RAM slots, and 14 PCIe expansion slots, it supports massive local storage resources. Integrated with patented technologies like DEMT (intelligent power management) and FDM (fault management), it significantly reduces O&M costs and optimizes ROI.
| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage | Supports various drive configurations: 8-31 x 2.5" SAS/SATA/SSD; 12-20 x 3.5" SAS/SATA; 4/8/16/24 NVMe SSDs; Dual M.2 SSDs |
| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, 60; Optional supercapacitor for cache protection; Drive roaming and self-diagnosis |
| Network | OCP 3.0 NICs supported; Two FlexIO card slots for customizable network adapters; Hot-swappable |
| PCIe Expansion | Up to 14 PCIe 4.0 slots (including dedicated RAID and OCP 3.0 slots) |
| Management | iBMC chip with dedicated GE port; Supports Redfish, SNMP, IPMI 2.0; Optional FusionDirector for full lifecycle management |
| Operating Systems | Windows Server, SUSE Linux Enterprise, VMware ESXi, Red Hat Enterprise, CentOS, Oracle, Ubuntu, Debian |
| Operating Temperature | 5°C to 45°C (41°F to 113°F) - ASHRAE Classes A1 to A4 compliant |
| Dimensions | 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.) |
| Power Supply | Dual hot-swappable PSUs (1+1 redundancy); Options from 900W to 3000W (Platinum/Titanium) |
