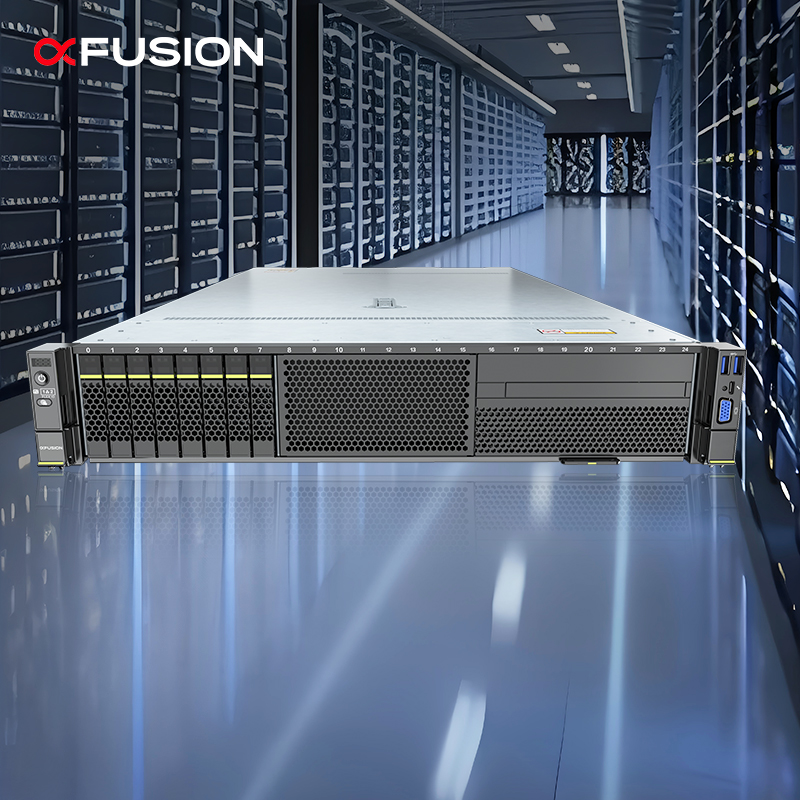

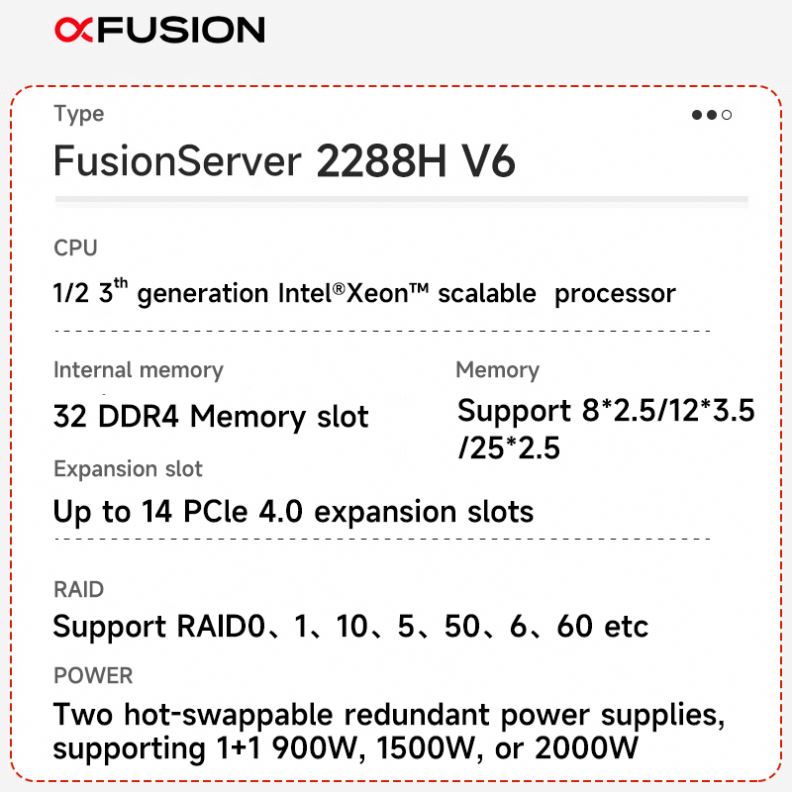

| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage | Supports 8-31 x 2.5-inch SAS/SATA/SSD; 12-20 x 3.5-inch SAS/SATA; 4/8/16/24 NVMe SSDs; Dual M.2 SSDs |

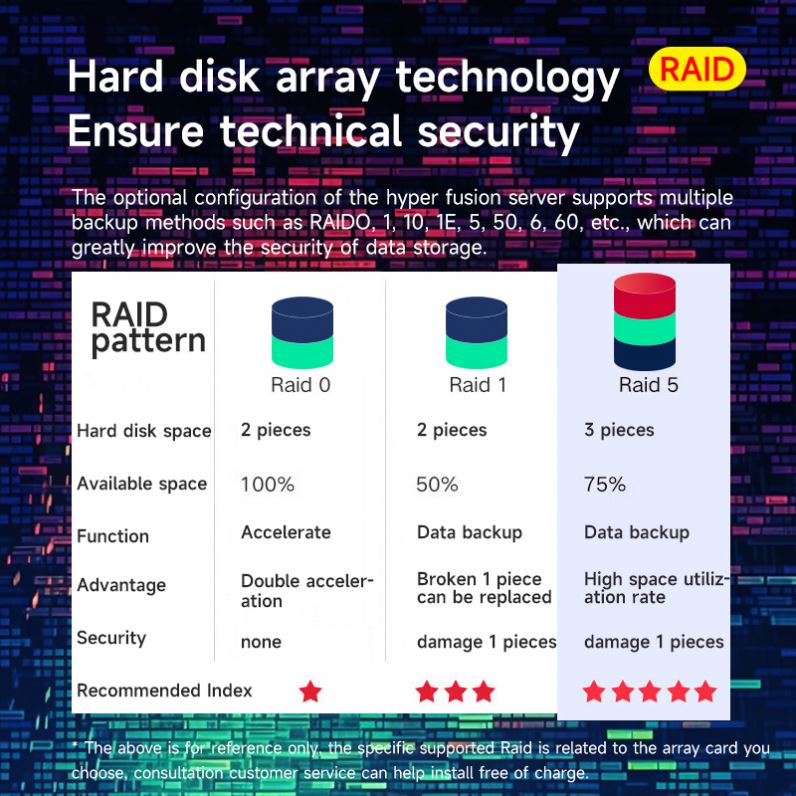

| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, 60; Optional supercapacitor; RAID level migration and drive roaming |
| Network | OCP 3.0 NICs via two FlexIO card slots; Hot swappable support |
| PCIe Expansion | Max 14 PCIe 4.0 slots (including dedicated RAID and OCP slots) |
| Chip Set | Intel C621A |
| Management | iBMC chip (Redfish, SNMP, IPMI 2.0, HTML5/VNC KVM); Optional FusionDirector software |
| Operating Systems | Windows Server, SUSE Linux, VMware ESXi, Red Hat, CentOS, Oracle, Ubuntu, Debian |
| Security | Power-on/Admin password, TPM 2.0, secure boot, cover opening detection |
| Fan Modules | Four hot-swappable counter-rotating fan modules in N+1 redundancy |
| Dimensions | 86.1 mm x 447 mm x 790 mm |
| Power Supply | 1+1 redundancy; Options: 900W/1500W/2000W/3000W Platinum or Titanium PSUs; HVDC & DC options |





To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
