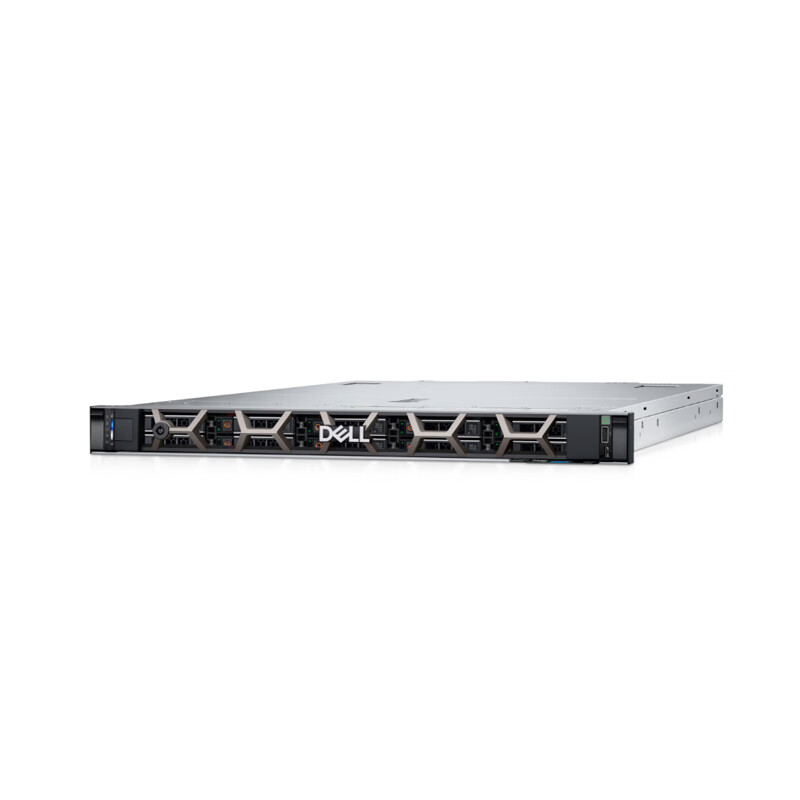

| Server Model | Dell R670 |
| Rack height (U) | 1 U rack server |

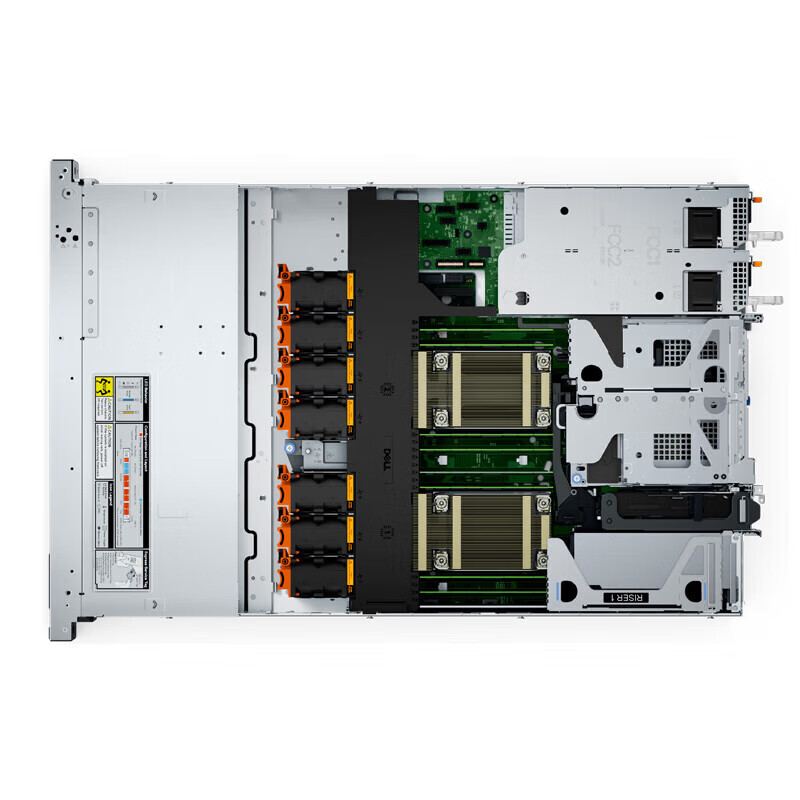

| Processors | Up to two 4th Generation Intel Xeon Scalable processors with up to 56 cores and optional Intel QuickAssist Technology |
| Memory | 32 DDR5 DIMM slots, supports up to RDIMM 8TB and speeds up to 4800 MT/S Only registered ECC DDR5 DIMMs supported |
| Storage controllers |
• Internal Controllers (RAID): PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i • Internal Boot: Boot Optimized Storage Subsystem • (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives, or USB • External HBAs (non-RAID): HBA355e • Software RAID: S160 |
| Drive Bays |

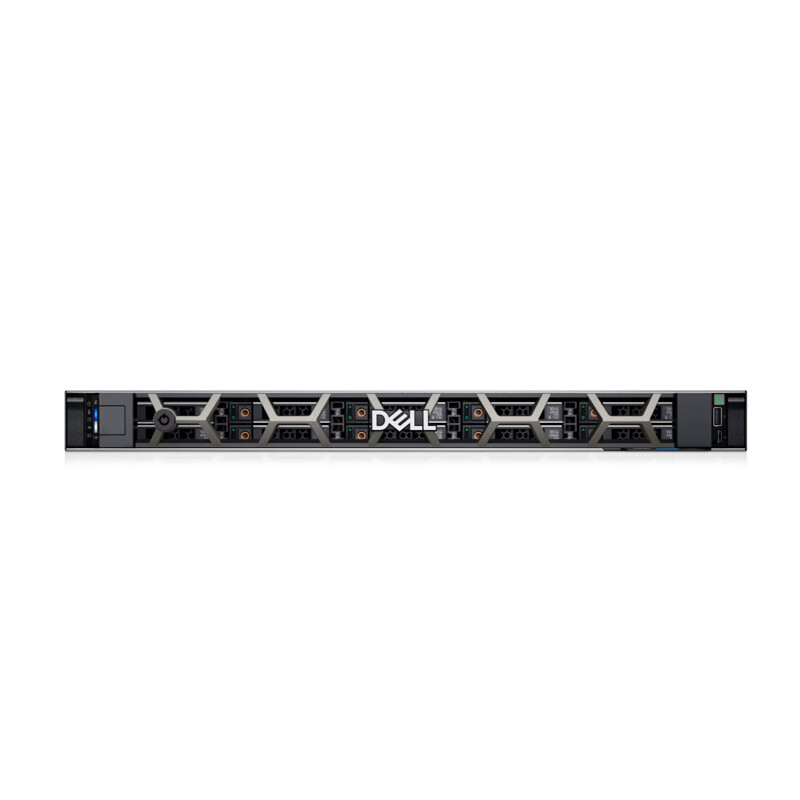

Front bays: • Up to 10 x 2.5-inch, SAS/SATA/NVMe (HDD/SSD) max 153.6 TB • Up to 8 x 2.5-inch, SAS/SATA/NVMe, (HDD/SSD) max 122.88 TB • Up to 14 x E3.S (Gen5 x NVMe) max 179.2 TB • Up to 16 x E3.S, (Gen5 x NVMe) max 204.8 TB Rear bays: • Up to 2 x 2.5-inch, SAS/SATA/NVMe, max 30.72 TB • Up to 2 x E3.S (Gen5 x NVMe), max 25.6 TB |
| Embedded Management |
• iDRAC9 • iDRAC Direct • iDRAC RESTful API with Redfish • iDRAC Service Module • Quick Sync 2 wireless module |
| Embedded NIC | 2 x 1 GbE LOM card (optional) |
| Network options |
1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system. |
| GPU Options | Up to 2 x 75 W SW |
